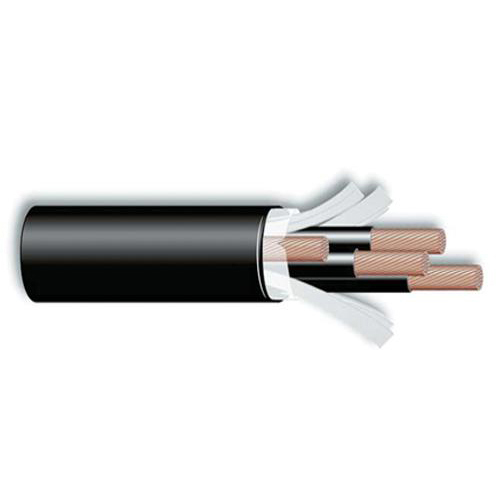

THHN / PVC POWER CABLE

StumbleUponEmail
Category:

Description

  • 600 Volts
  • Copper Conductors
  • PVC/Nylon Insulated Singles Rated THHN (or VNTC)
  • Non-Shielded Tray Cable
  • Available in 3 or 4 Conductors with Ground
  • Overall PVC Jacket
  • Flame Retardant, Moisture and Sunlight-Resistant

APPLICATIONS

  • Pro-Line’s Type TC Power Cable is used to supply power to motors, or for connection to other power devices in industrial settings
  • Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire
  • Type TC Power Cable is listed for direct burial and for use in Class 1, Division 2 hazardous locations and Class 1 control circuits
  • This cable may be used at temperatures not to exceed 75°C in wet locations and 90°C in dry locations. 6 and 8 AWG constructions with insulated grounds (standard) and 4 AWG and larger with bare or insulated ground are UL Listed for exposed runs (ER) per NEC 336.10

STANDARDS AND REFERENCES

Pro-Line’s Type TC Power Cable meets or exceeds the applicable requirements of the

following standards and specifications:

  • ASTM – (All applicable standards)
  • UL 1277 – Electrical Power and Control Tray Cables
  • UL 1581 – Electrical Wires, Cables and Flexible Cords
  • ICEA S-58-679 – Control Cable Conductor Identification. (Method 1, Table 2 – colored compounds with tracer colors – excluding white and green)
  • UL 1685 – UL Flame Exposure Test (70,000 BTU/hr)
  • ICEA T-30-250 – Vertical Cable Tray Flame Test (70,000 BTU/hr)
  • ICEA T-29-520 – Vertical Cable Tray Flame Test (210,000 BTU/hr)
  • IEEE 1202 – Flame Testing of Cables for Use in Cable Tray in Industrial and Commercial Occupancies (70,000 BTU/hr)

CONSTRUCTION

Pro-Line’s Type TC Power Cable is available in sizes 8 AWG through 750 kcmil and is manufactured using Type THHN or THWN conductors. Individual conductors are bare annealed copper covered with a polyvinyl chloride (PVC) insulation over which a nylon (polyamide) or UL listed equal jacket is applied. The overall jacket consists of a flame retardant, moisture and sunlight resistant PVC jacket. TC Power Cable shall be PRO-LINE WIRE & CABLE or approved equal.

  • Sizes 8 thru 2 AWG: Concentric, compressed or compact stranding, class B (7 strands) per ASTM B-8 or 19 wire combination stranding per ASTM B-787
  • Sizes 1 thru 4/0 AWG: Concentric, compressed or compact stranding, class B (19 strands) per ASTM B-8 or 19 wire combination stranding per ASTM B-787
  • Sizes 250 thru 500 KCMIL: Concentric, compressed or compact stranding, class B (37 strands) per ASTM B-8
  • Size 750 KCMIL: Concentric, compressed or compact stranding, class B (61 strands) per ASTM B-8
