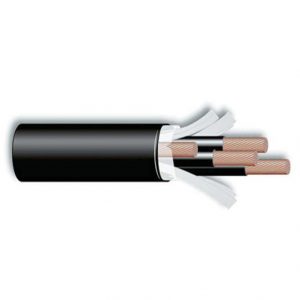

XHHW / PVC CONTROL CABLE

StumbleUponEmail

Description

  • 600 Volts
  • Copper Conductors
  • FR-XLP Insulated Singles Type XHHW
  • Rated VW-1
  • Overall PVC Jacket
  • Heat, Moisture and Sunlight-Resistant

APPLICATIONS



  • Pro-Line’s Type TC Control Cable is for use in industrial power or control circuits where small diameter, flame retardant cables are desired
  • Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire
  • Type TC Control Cable is also listed for direct burial and for use in Class 1, Division 2 hazardous locations and Class 1 control circuits
  • Conductors may be used in wet or dry locations at temperatures not to exceed 90°C



STANDARDS AND REFERENCES

Pro-Line’s Type TC Control Cable meets or exceeds the applicable requirements of the
following standards and specifications:
  • ASTM – (All applicable standards)
  • UL 1277 – Electrical Power and Control Tray Cables
  • UL 1581 – Electrical Wires, Cables and Flexible Cords
  • ICEA S-58-679 – Control Cable Conductor Identification. (Method 1, Table 2 – colored compounds with tracer colors – excluding white and green)
  • UL 1685 – UL Flame Exposure Test (70,000 BTU/hr)
  • ICEA T-29-520 – Vertical Cable Tray Flame Test (210,000 BTU/hr)
  • IEEE 1202 – Flame Testing of Cables for Use in Cable Tray in Industrial and Commercial Occupancies (70,000 BTU/hr)
Type TC Control Cable meets and exceeds all construction requirements of ICEA S-95-658 (NEMA WC 70) – Nonshielded 0 – 2kV Cables, with testing frequencies based on UL requirements.

CONSTRUCTION

Pro-Line’s Type TC Control Cable is available in sizes 14 AWG through 10 AWG, with multi-conductor constructions of 2 through 37 conductors. The product uses Type XHHW-2 rated VW-1conductors. Individual conductors are bare annealed copper covered with a cross-linked polyethylene (XLP). The overall jacket consists of a flame retardant, moisture, and sunlight-resistant PVC. TC Control Cable shall be PRO-LINE WIRE & CABLE or approved equal.

WEIGHTS, MEASUREMENTS AND PACKAGING
